Checking and selecting Indesit/Ariston firmware
One of the very important points in programming washing machines is understanding how to choose the right firmware for Indesit and Ariston washing machines; these two brands, which are essentially the same company, but separated for the “illusion of choice” for the buyer, are the most frequent guests in service centers and workshops for repairing household appliances with a diagnosis of “faulty firmware.”
They are the most frequent guests, not so much because they are the cheapest and, as a result, the most widespread, but because the slightly “crooked” hands that grow out of the shoulders of the developers do not allow them to write good and reliable software, unlike, for example, Samsung or Bosch, which Firmware is only needed after a lightning strike (complete replacement of the processor) or an electrician's screwdriver (unskilled repair).
Parameters on the tag

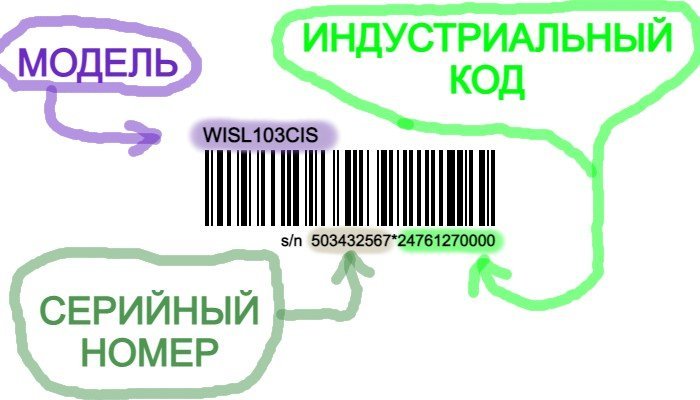

Each Indesit or Ariston washing machine has a tag located behind the laundry loading hatch door, which contains all the necessary information for complete identification of the device and selection of firmware.
Washing machine model is an alphanumeric identifier of a product series, which can hide the number of spin revolutions, load type and even the manufacturer
Industrial code is a numeric identifier of a product series, which reveals in more detail all the spare parts used and the resulting parameters.
Serial number is a unique numeric code assigned to a specific washing machine and stores the serial number of the product and the production date; each washing machine has its own code
Washing machine model is an alphanumeric identifier of a product series, which can hide the number of spin revolutions, load type and even the manufacturer
Industrial code is a numeric identifier of a product series, which reveals in more detail all the spare parts used and the resulting parameters.
Serial number is a unique numeric code assigned to a specific washing machine and stores the serial number of the product and the production date; each washing machine has its own code
How to search for firmware

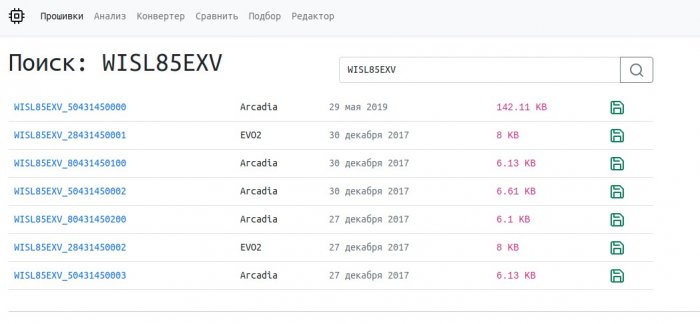

To select the firmware, you need to go to the website bineep.ru and in the search bar indicate the model of the washing machine without spaces and preferably only letters and numbers
Here we entered the search query WISL85EXV (Try to enter without spaces, dashes or other characters other than “/” or “.”, these characters are in the names of some models).
As we can see, for one model WISL85EXV there are 3 variants of the product code (i.e., as you might guess, the product code reveals the model in more detail).
Here we entered the search query WISL85EXV (Try to enter without spaces, dashes or other characters other than “/” or “.”, these characters are in the names of some models).
As we can see, for one model WISL85EXV there are 3 variants of the product code (i.e., as you might guess, the product code reveals the model in more detail).
The influence of the serial number on the choice of firmware

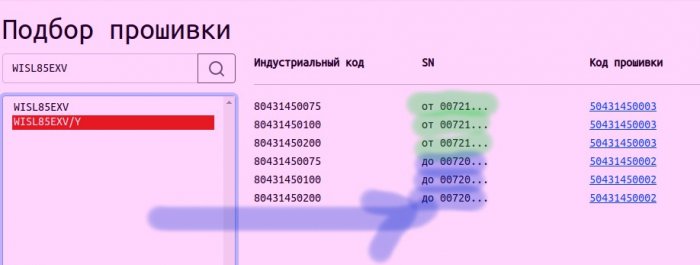

Before S/N - means that if your serial number is less than 00720... (where "..." - no matter what characters) you need to use firmware 50431450002
From S/N - means that if your serial number is greater than 00721..., then you need to use firmware 50431450003
for a more accurate selection of firmware for the model, it is better to use selection service firmware
If during a search query these fields are empty, then either there is no data or it is not important.
As we see, for 6 variants of washing machines, 2 firmwares are suitable, be careful in choosing the firmware, since choosing it incorrectly can lead to subsequent malfunctions.
From S/N - means that if your serial number is greater than 00721..., then you need to use firmware 50431450003
for a more accurate selection of firmware for the model, it is better to use selection service firmware
If during a search query these fields are empty, then either there is no data or it is not important.
As we see, for 6 variants of washing machines, 2 firmwares are suitable, be careful in choosing the firmware, since choosing it incorrectly can lead to subsequent malfunctions.
How to check the functionality of the firmware

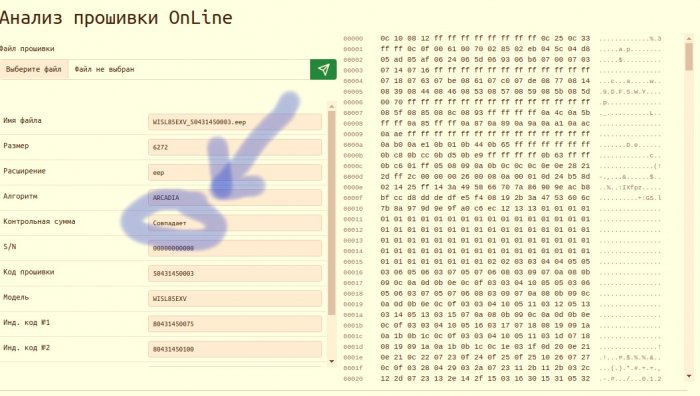

To check any firmware of indesit washing machines, a checksum is used, a certain set of numbers calculated by the developers when writing the firmware, after which they enter this value into the firmware itself and analysis service firmware or a program for working with the programmer determines whether the written and calculated value matches or not.
Determining serviceability by checksum can only be relevant in the config, i.e. module configuration file, usually this file is in .eep format. If we want to check the serviceability of a complete firmware dump, then there are no special methods, only by trial and error, upload the firmware and check whether it works or not.
You can also compare firmware with each other using the service parallel comparison of binary data, here by the way you can compare not only firmware, but also any two files, since the comparison takes place in binary mode
Determining serviceability by checksum can only be relevant in the config, i.e. module configuration file, usually this file is in .eep format. If we want to check the serviceability of a complete firmware dump, then there are no special methods, only by trial and error, upload the firmware and check whether it works or not.
You can also compare firmware with each other using the service parallel comparison of binary data, here by the way you can compare not only firmware, but also any two files, since the comparison takes place in binary mode
